Structure of Linkable LED Strip Lights

Linkable LED strip lights is also called LED linear trunking system, LED linear lights or LED trunk lights, it is very popular lighting solution for those narrow space.

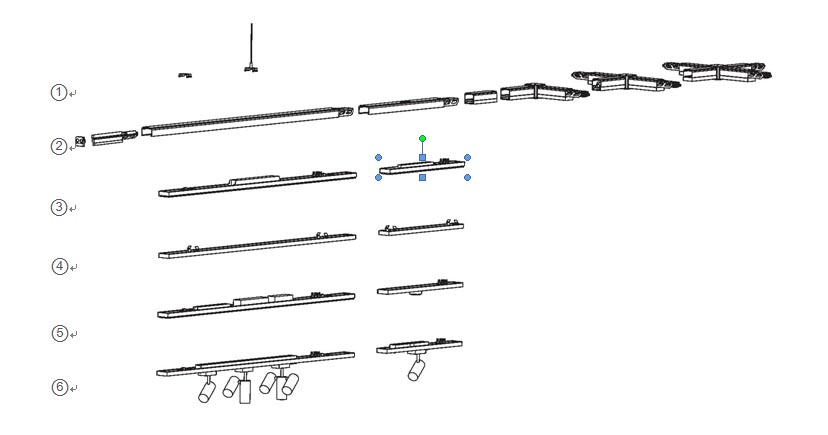

① Surface Mounted Kits / Suspension Kits
② End Cap / “一” Type Node Connector
Linear Trunking Rail (2FT / 5FT / 10FT/ 15FT), End Box / “L”，“T”，“X” Type Node Connector

③ LED Luminaire (5FT / 2FT)
④ Blank Cover (5FT/2FT)

Function Optional

⑤ Emergency Module (5FT) Sensor Module (2FT)
⑥ Track Rail Module (5FT / 2FT)
