Installation of LED Trunk Single Lamps - Surface Mounted





Step 1: Mounting

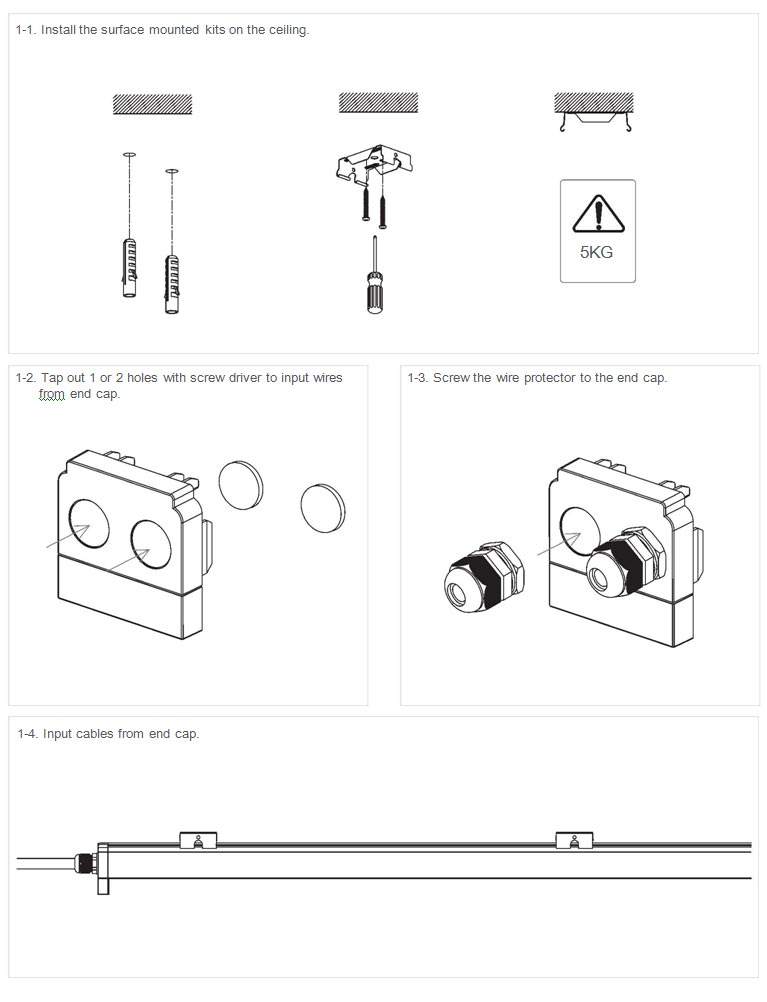

1-1. Install the surface mounted kits on the ceiling.
1-2. Tap out 1 or 2 holes with screw driver to input wires from end cap.        1-3. Screw the wire protector to the end cap.
1-4. Input cables from end cap.






Step 2: Wiring and Locking

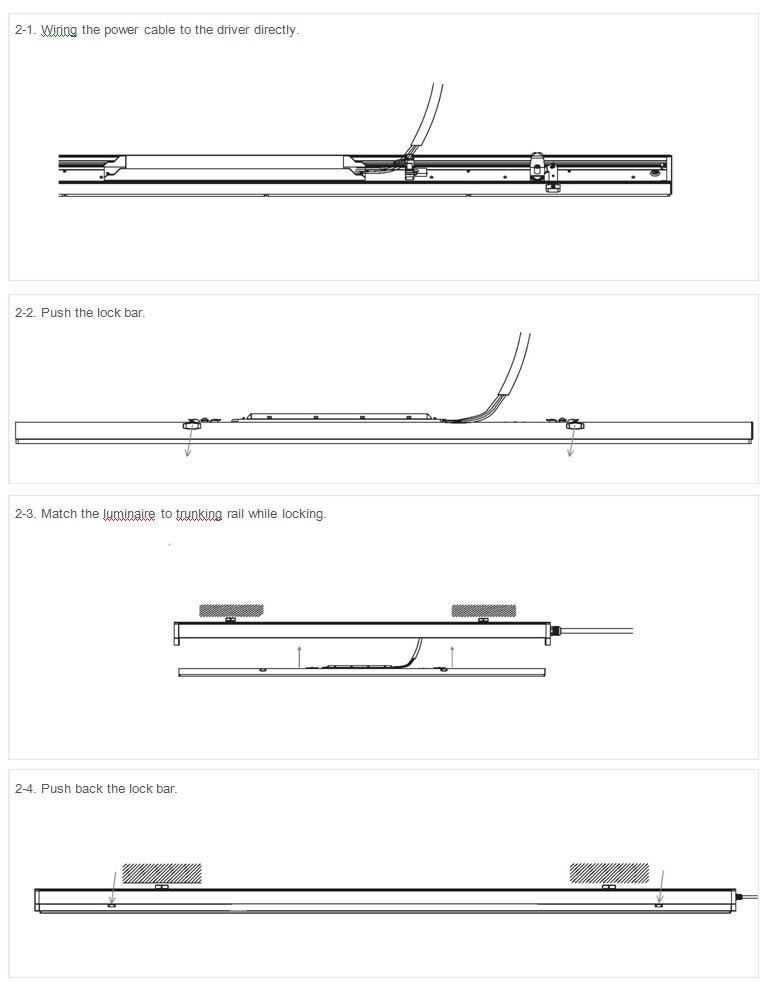

2-1. Wiring the power cable to the driver directly.
2-2. Push the lock bar.
2-3. Match the luminaire to trunking rail while locking.
2-4. Push back the lock bar.
