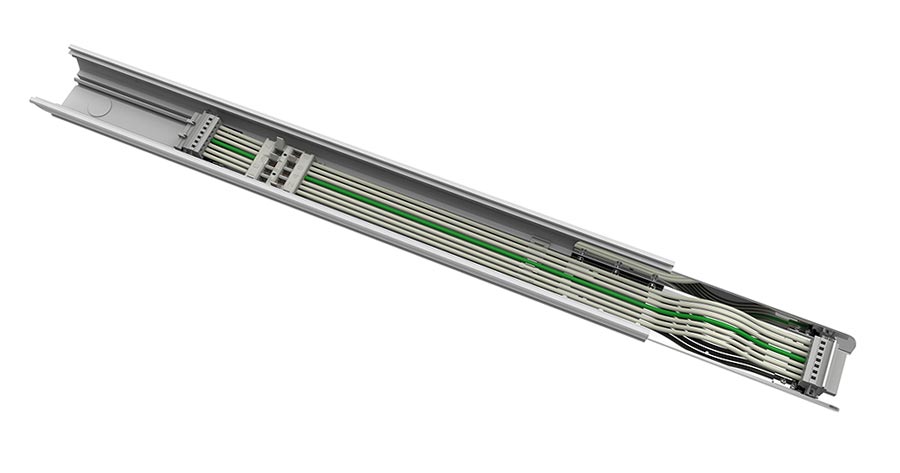

Item: YB-01-D Trunk Rail - Trunking Rail for 26W-65W Linkable LED Trunking Light System

Features of Trunking Rail for 26W-65W Linkable LED Trunking Light System

• The track is the bracket to fix the lamp body
• The circuit preset in the track powers the lamp body
• Splicing between tracks to form a system.
• The rails are pre-wired within the factory and are available in three standard  sizes: 3, 5, and 7 wires. The 5th line is the basic power supply line, and the other line outside the 5th line is the function line, dimming and emergency functions.
• There are 3 fire wires in 5 wires, and a common zero line and ground wire;  toggle the phase selection terminal in the track to connect the lamp body to  different electrical circuits. Three FireWire external switches can easily realize  the group management of different lamps in the system.
• A 2.5 square wire cable with a maximum current of 16A. One wire allows the installation of 50 60W lamps.
• The track length is available in three sizes: 600mm/1200mm/1500mm, which  corresponds to a lamp body of the same length.

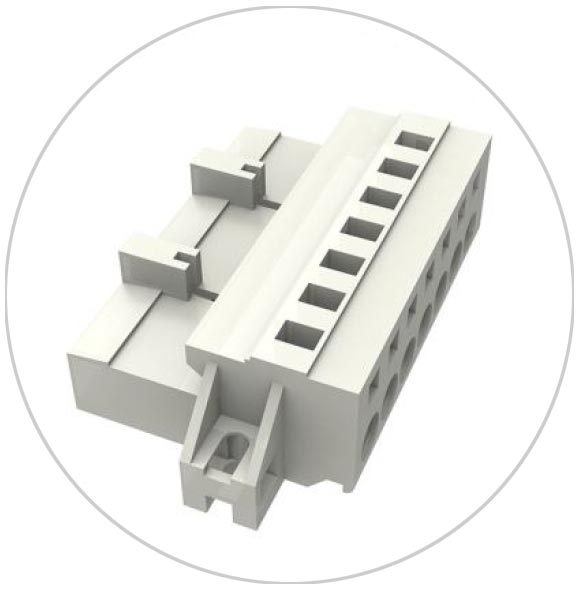

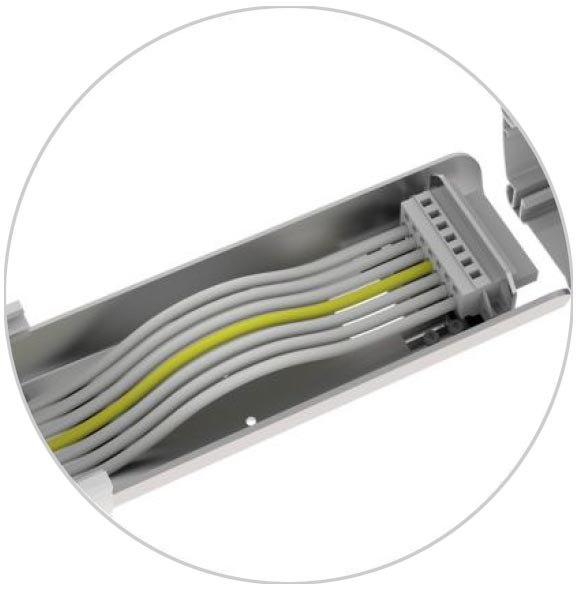

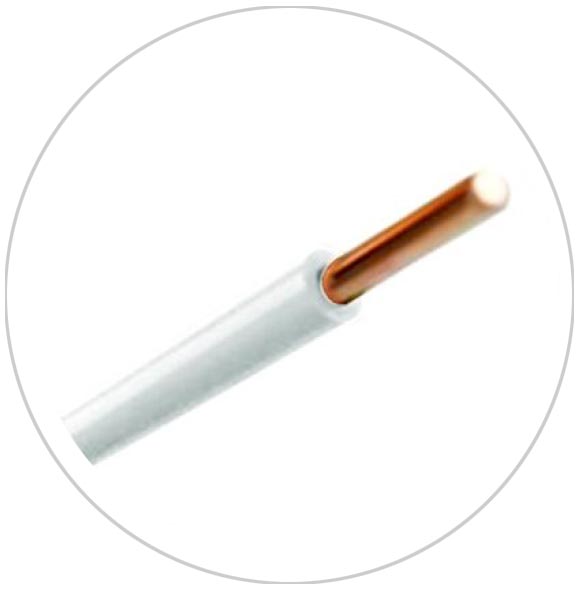

Wire 2.5mm2 wire diameter pure copper wire, the maximum allowable current is 16A.	Splice piece The unique splicing way ensures the safety and stability of the use process.	Splicing terminal The wiring is safe and fast, with detection holes, simple structure, easy to install and test.

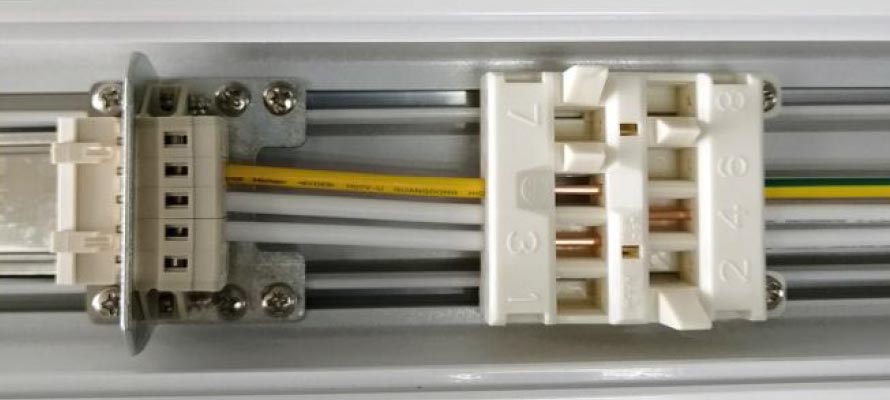

	3 wire trunk rail Seamless stitching，No need for bridges, no need to purchase additional materials, no wiring, provincial construction period, installation fees, labor costs, auxiliary materials costs, ceiling decoration costs.

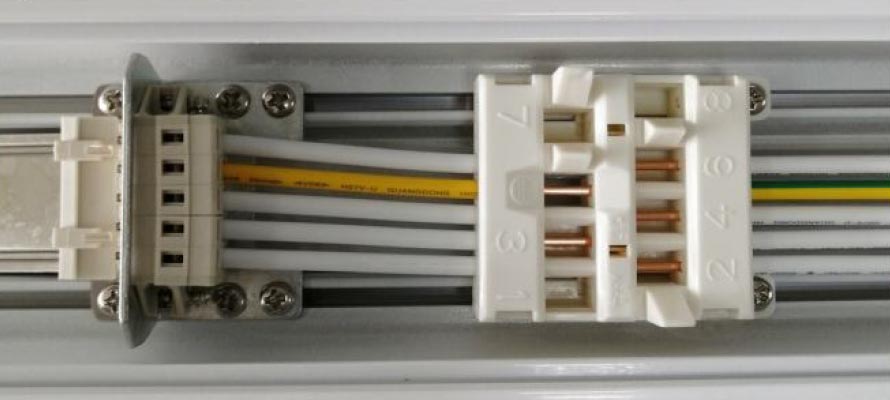

	5 wire trunk rail There are three fire lines in the five-wire track, a common zero line and ground line, for the basic power supply line, toggle the lamp body internal devices, select any L1, L2, L3 lines, to achieve independent segmentation (on / off) control.

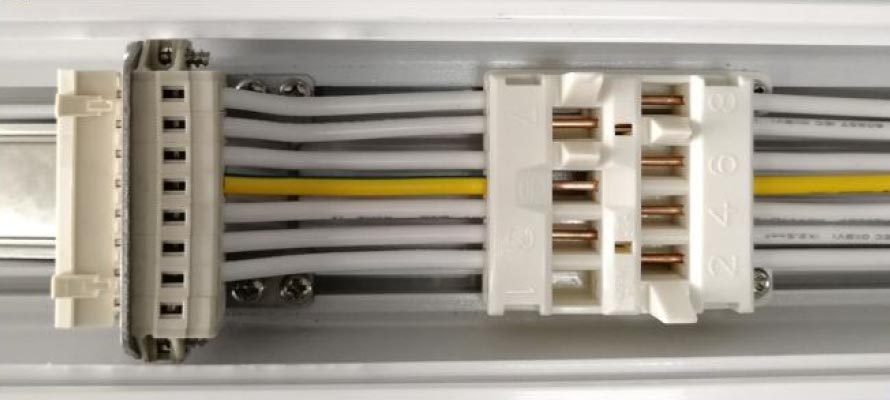

	7 wire trunk rail Two additional function lines based on the 5-wire function, with additional dimming / emergency / induction function, whichever one you prefer. Dimming function (Dali / 1-10V) Emergency Function (emergency battery / UPS system) Induction Function (Microwave Sensor / Daylight Sensor)

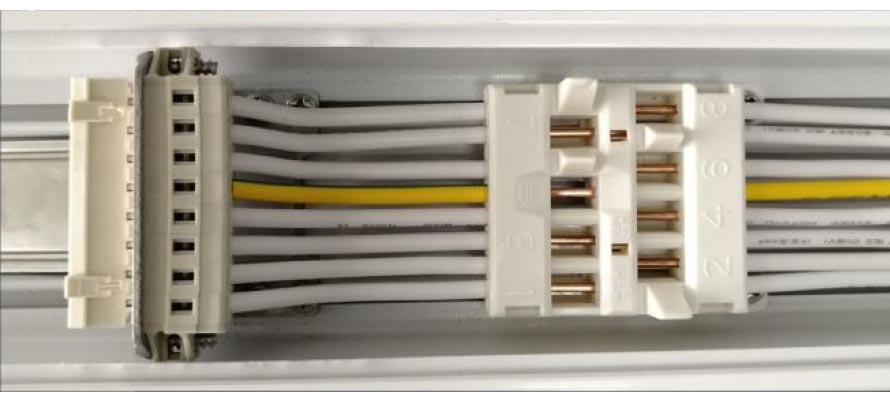

	8 wire trunk rail Add 3 functions to the 3-wire function-dimmer / emergency / sensor. Dimming function (Dali / 1-10V). Emergency Function (emergency battery / UPS system. Sensing Function (Microwave Sensor / Daylight Sensor).
