Item: YB-LG-25MA - LG-25MA LED Power Driver ( LED Power Supply )

Item: YB-LG-25MA
Product Name: LG-25MA LED Power Driver ( LED Power Supply )

  • Constant current mode
  • Isolated power supply with plastic case
  • Build in protection function of short circuit, over current, over voltage and over temperature
  • With 1-10v dimming function
  • Build-in 3-in-1, intelligent time isolated dimming function ( dim off or not )
  • With auxilliary power  +12V ( optional )

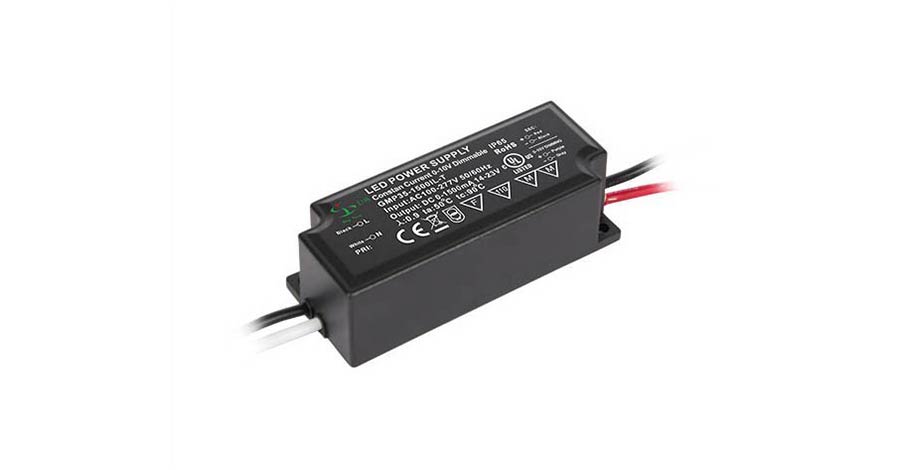

picture (image) of lg-25ma.jpg

Description

Power: 25W
Application: Flood light, Stage light and Area light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features

Efficiency up to 87%
Isolated Dimming(Optional): 0-10V, PWM, Resistor
IP65
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 2kV
Operation temperature: -40~+60



Model AC Input Range DC Output Range Output Current Output Power
LG-25M023A (100-277)Vac (11-23)Vdc (0.9-1.3)A 25W
LG-25M033A (100-277)Vac (20-33)Vdc (0.6-0.9)A 25W
LG-25M054A (100-277)Vac (33-54)Vdc (0.37-0.55)A 25W
