Item: YB-LD-80N - LD-80N LED Power Driver ( LED Power Supply )

Item: YB-LD-80N
Product Name: LD-80N LED Power Driver ( LED Power Supply )

  • Constant current mode
  • Isolated power supply with aluminium case
  • Output current adjustable
  • Build-in 3-in-1, intelligent time isolated dimming function

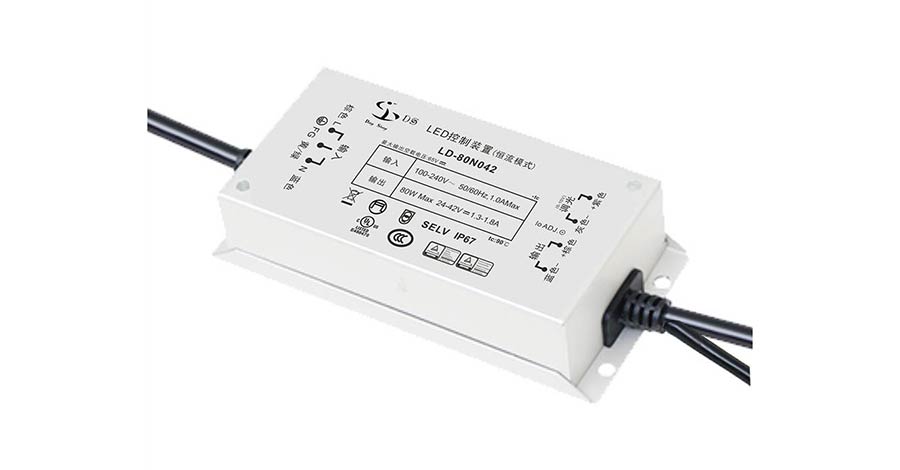

picture (image) of ld-80n.jpg

Description

Power: 80W
Application: Street light, Highbay, Flood light, Stage light and High-pole light
Certificates: UL ClassP, TUV, CCC, CE
5 Years Warranty

Features

Efficiency up to 89%
Isolated Dimming(Optional): 0-10V, PWM, Resistor and Timming
IP67
Protections: SCP/OCP/OVP/OTP
Surge Protection: L-N: 4kV, L/N-PE: 6kV
Operation temperature: -40~+60



Model AC Input Range DC Output Range Output Current Output Power
LD-80N042 (100-277)Vac (24-42)Vdc 1.3-1.8A 80W
LD-80N054 (100-277)Vac (36-54)Vdc 1-1.4A 80W
LD-80N108 (100-277)Vac (65-108)Vdc 0.5-0.7A 80W
